Description
| Model | XP-365B | |
| Print mode | Label print mode | Receipt print mode |
| Printing Features | ||
| Resolution | 203 DPI | |
| Printing method | Direct Thermal | |
| Max. print speed | 127 mm/s | 220 mm/s |
| Max. print width | 76 mm | |
| Media | ||
| Media type | Thermal roll paper, thermal adhesive paper | |
| Media width | 20~82 mm | |
| Media thickness | 0.06 ~ 0.19 mm | |
| Media roll diameter | Max.82 mm | |
| Supply method | Easy Paper Loading | |
| Performance Features | ||
| Ram | 4 M | |
| Flash | 4 M | |

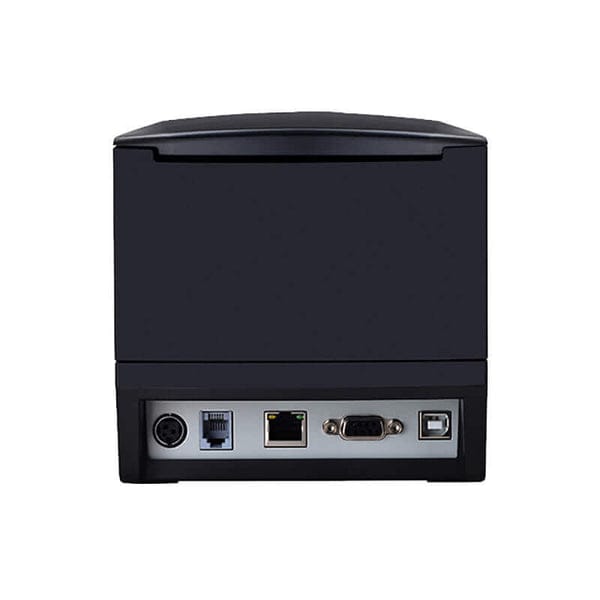

| Interfaces | USB / USB+Lan / USB+WIFI/ USB+Bluetooth | USB+Lan+Serial / USB+Serial+Lan+Bluetooth / USB+Serial+Lan+WIFI |
| Sensors | Print head temperature sensor/ Paper end/ Cover open / Gap | Print head temperature sensor/ Paper end/ Cover open |
| Drawer port | 1 ports (Pin 2 for cashdrawer) | |
| Fonts/Graphics/Symbologies | ||
| Character sizes | Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2 | |
| 1D barcode | CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14 | |
| 2D bar code | PDF417、QRCODE、 DataMatrix | |
| Emulaion | TSPL | ESC/POS |
| Physical Features | ||
| Dimension | 212*140*144mm (D*W*H) | |
| Weight | 0.94 kg | |
| Reliability | ||
| Print head life | 100 km | |
| Software | ||
| Driver | Windows | |
| SDK | iOS / Android/ Windows | |
| Power supply | ||
| Input | DC 24V/2.5A | |
| Environmental Conditions | ||
| Operation environment | 5～45℃ Humidity: RH 20 ~ 80% | |
| Storage environment | -40～55 ℃ Humidity:≤93% RH | |
