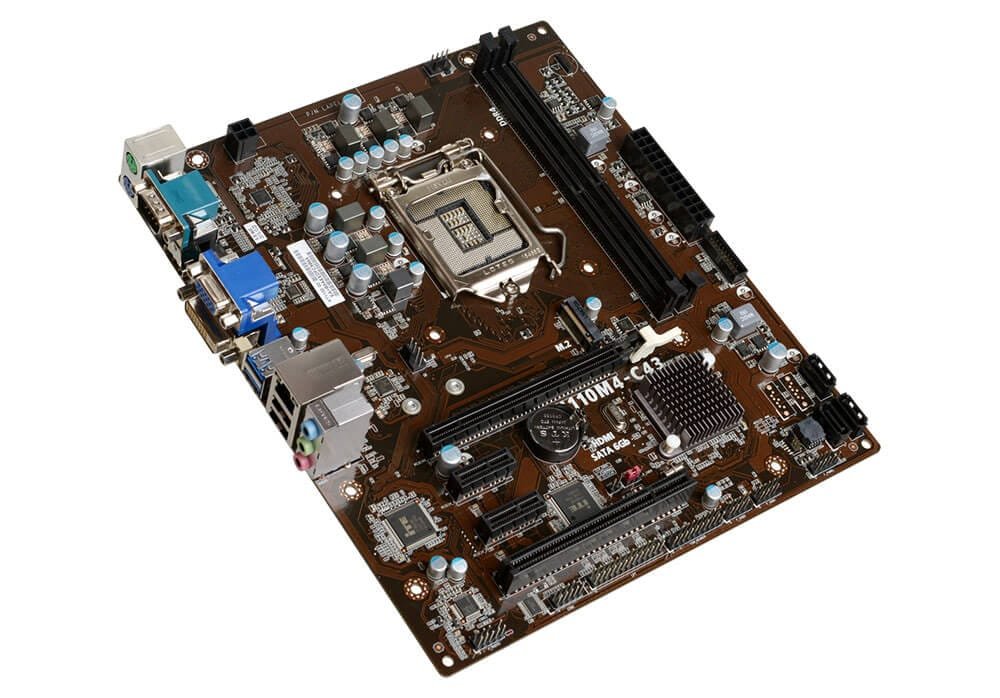

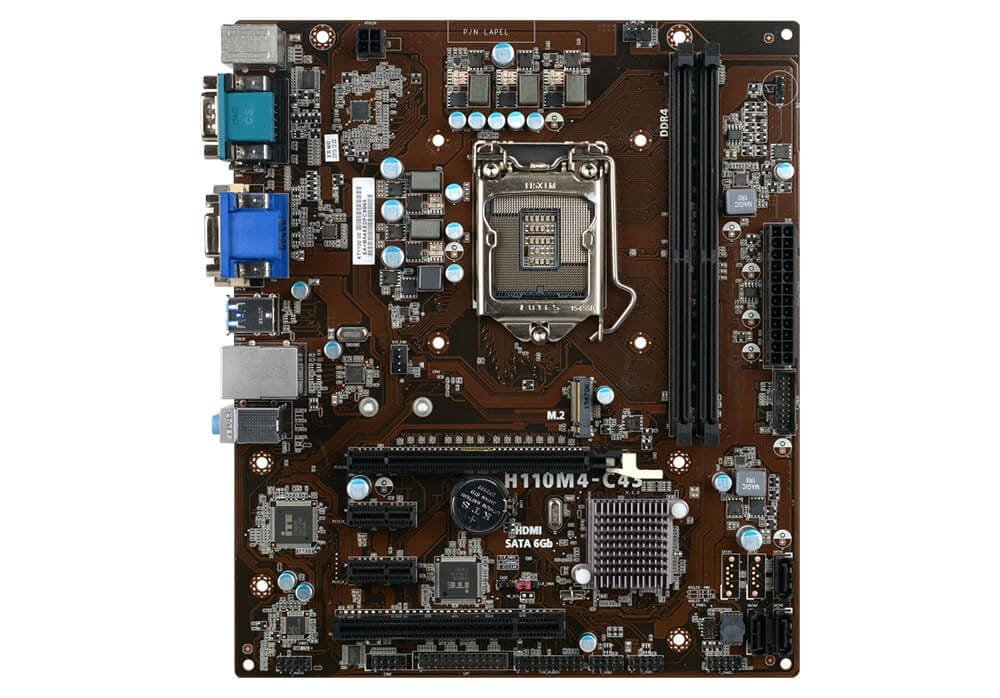

ECS H110 Used Motherboard (M.2)

Description

• CPU
  5-phase power supply design

  100% Solid Capacitor Design
• CHIPSET
  Intel® ^H110 Express Chipset
• GRAPHICS
  Compatible with ^DirectX® 12

  HDMI™ and Premium Audio compatible
• MEMORY
  Dual-channelDDR4 Memory architecture

  Supports DDR4 2400 non-ECC, unbuffered SDRAM memory

  2 x 288-pin DDR4 DIMM socket

  ∟ Support up to 32 GB*
• EXPANSION SLOT
  1 X PCI Express X16 Gen 3.0 slot(s)

  2 X PCI Express X1 Gen 3.0 slot(s)

  1 x M.2 slot for SSD

  ∟ For 2260/2280 SSD

  1 PCI slot(s)
• Storage
  Compatible with Express H110 chipset

  3 ATAIII 6 Gb/s serial port(s)
• Audio
  6-channel HD audio codec

  Realtek ALC662 6-channel HD audio codec
• LAN
  Realtek 8111GN Gigabit Fast Ethernet Controller

  Wake-On-LAN
• USB
  4 X USB 3.2 Gen 1×1 port(s) up to 5Gb/s

  •Back Panel 2 port(s)

  •Onboard 2 port(s)

  6 X USB2.0 port(s) Up to 480 Mb/s

  •Back Panel 2 port(s)

  •Onboard 4 port(s)

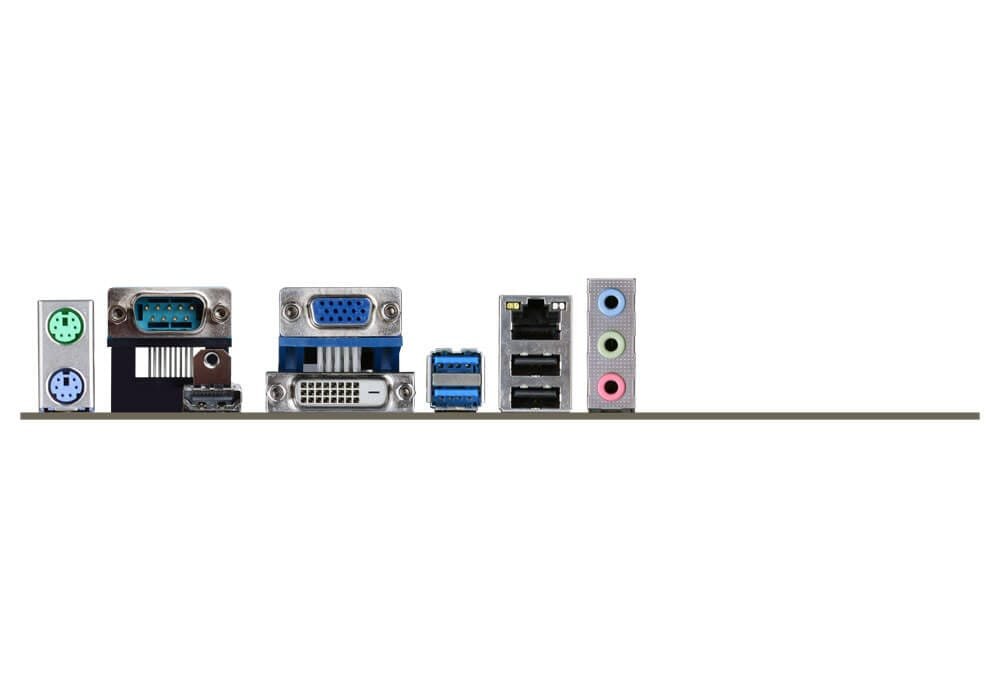

• REAR PANEL I/O
  1 PS/2 keyboard and mouse connector

  1 serial port (COM)

  1 audio port (line out/line in/microphone in)

  1 RJ-45 port

  1 HDMI™ port(s)

  1 DVI-I port(s)

  1 D-Sub (VGA) port

  2 X USB 3.2 Gen 1×1 Type A port(s)

  2 x USB 2.0 port(s)
• CONNECTORS & HEADERS
  1 x 24-pin ATX power supply connector

  1 x 12V 4-pin power connector

  1 CPU_FAN 4-pin connector

  1 SYS_FAN 4-pin connector

  1 front panel microphone/speaker output

  1 front panel switching/LED header

  1 x USB 3.2 Gen 1×1 header

  ∟Support additional 2 USB ports

  2 x USB 2.0 header

  ∟Support additional 4 USB ports

  3 SATA III 6 Gb/s connectors

  1 CLR_CMOS head

  1 serial port (COM) header(s)

  1 parallel port (LPT) header

  1 TPM head

  1 chassis intrusion head
• SYSTEM BIOS
  AMI BIOS with 64MB SPI Flash ROM

  F7 shortcut key to launch device options

  Dual screen

  Compatible with UEFI GUI BIOS

  BIOS in multiple languages
• FORM FACTOR
  mATX form factor

  244mm*210mm
• Supported OS
  Windows 10 64-bit
