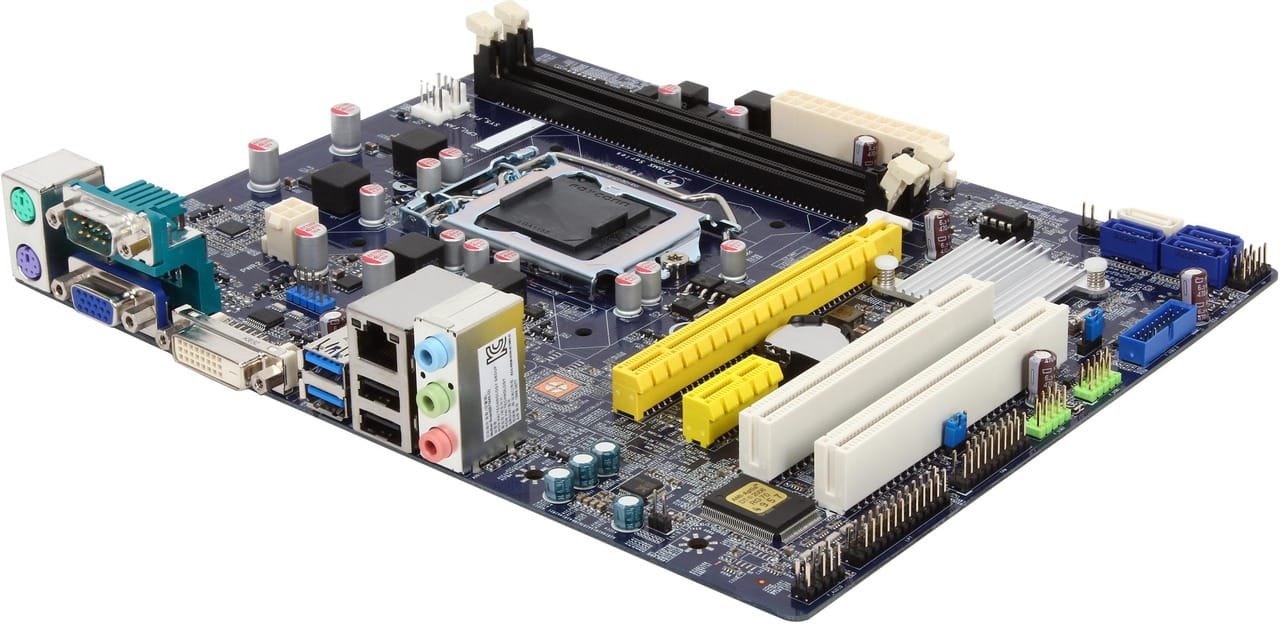

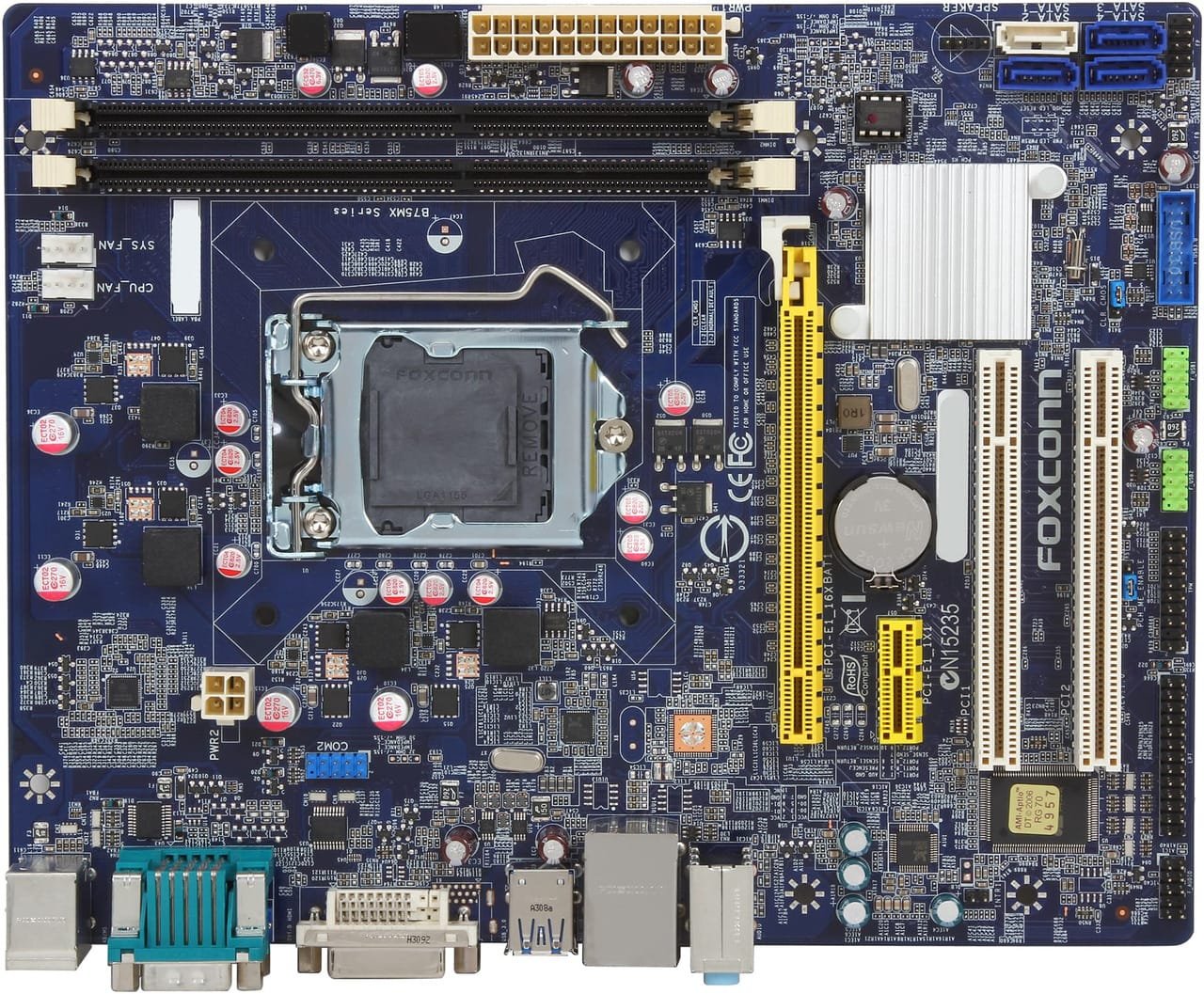

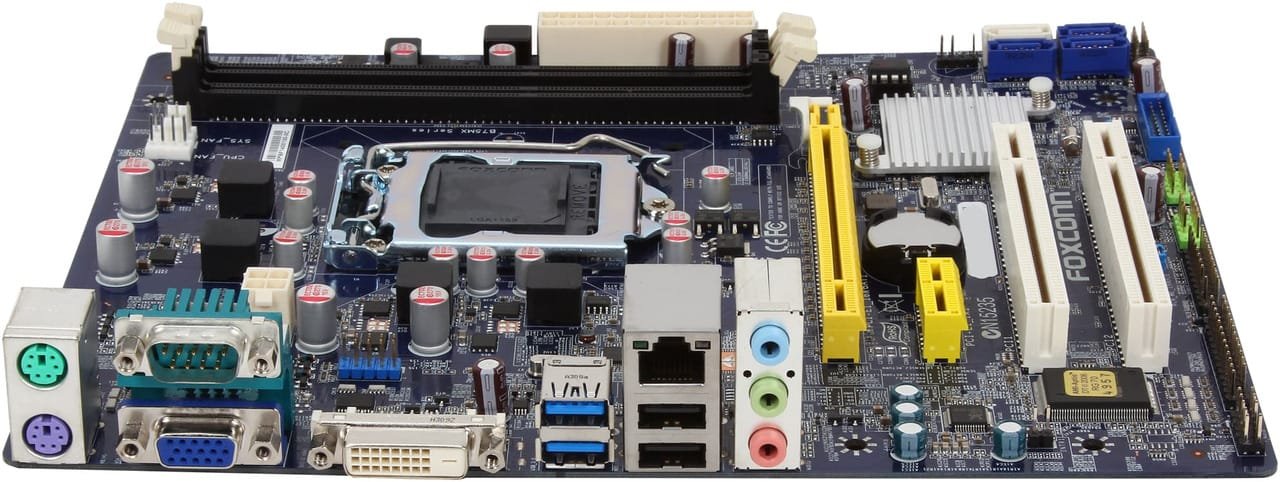

Foxconn B75 Used Motherboard (2RAM SLOT)

Description

Form Factor Micro ATX
CPU Socket Type LGA 1155
CPU Type Supports the Intel second / third generation Core i7 / Core i5 / Core i3 processors with Socket 1155
Supports Intel 22/32nm Hi-K CPU
Max 95w
Chipset Intel B75
Number of Memory Slots 2×240pin
Memory Standard DDR3 1600MHz
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots 1x PCIe 3.0(IVB) x16 slot
1x PCIe x1 slot
2x PCI bus slots
SATA 3Gb/s 3 x SATA 3Gb/s
SATA 6Gb/s 1 x SATA 6Gb/s
Onboard Video Chipset Integrated Graphics Processor (Supported only by CPU)
Audio Channels 5.1channel HD Audio
Max LAN Speed 10/100/1000Mbps
Back I/O Ports 1x PS2 keyboard port
1x PS2 Mouse port
1x DVI port
1x VGA port
1x Serial port
1x 3-port audio jacks
2x USB 2.0 ports
2x USB 3.0 ports
1x RJ45 port
Internal I/O Ports 1x ATX 24-Pin power conn
1x 4-pin ATX 12V power conn
1x 4-pin CPU /1x 4-pin System FAN
1x Front pannel header
1x Front Audio header
1x COM header
1x Parallel header
1x TPM/TCM header
3x SATA2 conn
1x SATA3 conn
2x USB2.0 headers
1x USB3.0 header
1x Intruder Alarm header
1x Speaker header
1x CLR_CMOS header
Dimensions 9.6″ x 7.6″
Power Pin 24 Pin
